|(1) Nut Eye Bolts are not recommended for lifting applications. See Machinery Lifting Eye Bolts for
lifting applications. (2) "Rated Capacity" refers to a straight, zero degree pull. Pulling at an angle
can reduce the rated capacity significantly. (3) We can produce Eye Bolts in lengths other than that
shown in all diameter. 1 1/4" Eye Bolts beyond 12" lengths and diameters 1 1/2" are produced as
"Specials". Please contact us with specifications for quoting.

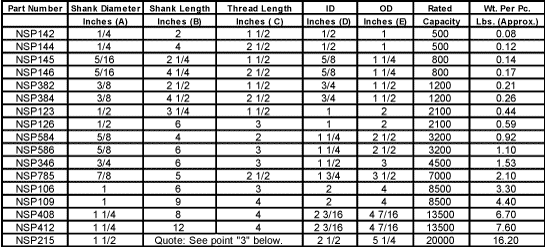

|FORGED EYE BOLT WITHOUT SHOULDER
|FORGED EYE BOLT WITH SHOULDER
