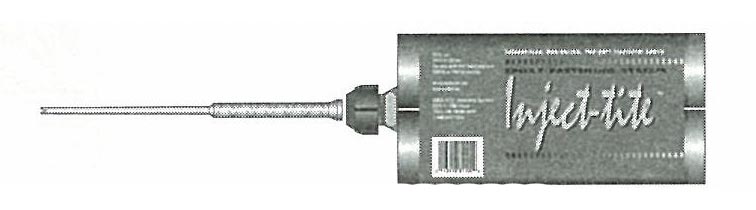

Inject-TITE® Fast-Set Epoxy
Inject-TITE® Adhesive Anchors are available as a Fast-Set Epoxy.  It is available in an 8.5 ounce cartridge for small jobs.  It fits into a
standard 10 ounce caulking gun.  It is also available in a 22 ounce cartridge for larger projects.
A dual-cartridge manual dispensing tool is needed for this size cartridge.  Good for hollow block applications !

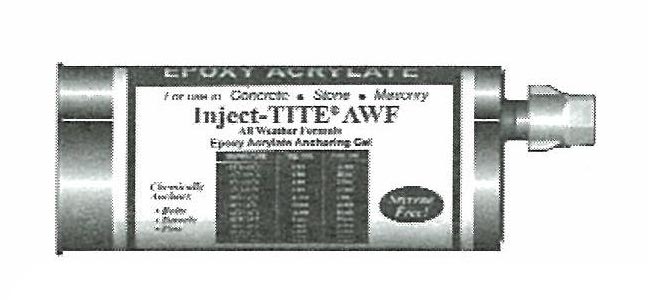

Inject-TITE® AWF
All-Weather Formula Epoxy Acrylate
Inject-TITE AWF® All-Weather Formula Epoxy Acrylate works in all base materials including concrete,
brick, and stone masonry.  Its working range is from -15° F to 120° F.  It will set in
water-filled and damp holes.  It is available in an 8.5 ounce cartridge for small jobs,
and a 28 ounce cartridge for larger projects.
STATIC MIXING NOZZLES
Available as :
1/2" Nozzle For 8.5 Ounce Cartridge
1/2" Nozzle (Fast-Set or AWF)
Available For :
22 Ounce Dual Cartridge
28 Ounce Dual Cartridge
NYLON SCREENS FOR HOLLOW WALL APPLICATIONS
SCREEN SIZE
THREADED STUD DIAMETER
HOLE SIZE
3/8 x 14     (#ESCN3814)
3/8
1/2
1/2 x 14      (#ESCN1214)
1/2
5/8
5/8 x 14      (#ESCN5814)
5/8
3/4
3/4 x 14      (#ESCN3414)
3/4
7/8

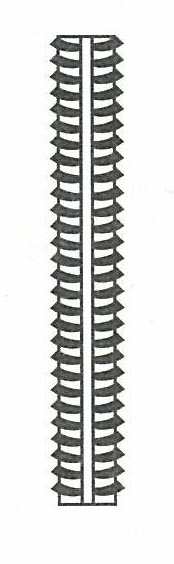

THREADED STUD ASSEMBLIES
(NUTS & WASHERS INCLUDED)
Threaded studs are used in hollow wall applications with screens, or may be used without
screens in any other application in concrete, masonry, and brick.  The studs are available with a
straight cut or  a bevel cut.  The bevel cut studs are often used with Spin-In Synthetic Mortar
Chemical Capsule Anchor.
Threaded Stud Size
Carbon Steel
Type 304 Stainless
Type 316 Stainless
3/8 x 5

1/2 x 6-1/4

5/8  x 7-1/2

3/4 x 9-1/2

7/8 x 10-1/4

1 x 11-3/4

1-1/4 x 14

STRAIGHT CUT OR BEVEL CUT

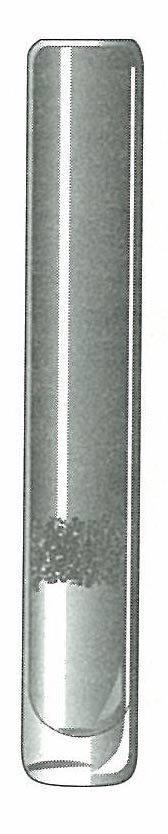

Slam-TITE® Hammer-In Chemical Capsule Anchors
The Slam-TITE®  Hammer-In Chemical Anchor is easy to install.  Jjust use a hammer to bang it in.  It is extremely
economical, as you only use the amount you require.  It is very reliable, as It works in all types of weather.  It eliminates
expansion forces, as it can be used close to a free edge.
* OTHER TEST RESULTS AVAILABLE FOR REINFORCING BAR
Threaded Stud And
Capsule Diameter
Drill Diameter
Embedment
Tensile Strength In 4000
psi Concrete (Lbs)
3/8
7/16
3-1/2
5,395
1/2
9/16
4-1/4
8,318
5/8
3/4
5-1/2
15,287
3/4
7/8
5-3/4
17,985
7/8
1
7
22,481
1
1-1/8
8-1/4
32,372
1-1/4
1-3/8
11

Spin-In Chemical Capsule Anchors
The Spin-In Chemical Anchor has no expansion stress, as the "synthetic mortar" bonds
the stud assembly to the concrete
Threaded Stud And
Capsule Diameter
Drill Diameter
Embedment
Tensile Strength In 4000
psi Concrete (Lbs)
3/8
7/16
3-1/2
4,721
1/2
9/16
4-1/4
6,744
5/8
3/4
5
 10,116
3/4
7/8
6-5/8
 18,210
7/8
1
7
 22,481
1
1-1/8
8-1/4
 24,954
1-1/4
1-3/8
11
 40,466
Temperature
Minimum Cure Time
68 AND OVER
10 MINUTES
50 TO 68
20 MINUTES
32 TO 50
1 HOUR
23 TO 32
5 HOURS
CURE TIME FOR SLAM-TITE® AND SPIN-IN CHEMICAL CAPSULE ANCHORS
8.5 OZ.
INJECT-TITE®
#ECT8F
22 OZ.
INJECT-TITE®
#ECT22F
8.5 OZ. INJECT-TITE AWF®
#ECA8
28 OZ. INJECT-TITE AWF®
#ECA28
22 OZ. TOOL
#EHT22
28 OZ. TOOL
#EHT28
1/2" NOZZLE FOR 8.5 OZ.
CARTRIDGE
#ECANZ12
1/2" NOZZLE FOR FAST-SET
#ENZ38
1/2" NOZZLE FOR AWF
#ENZ12

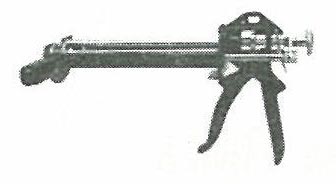

DUAL CARTRIDGE MANUAL DISPENSING TOOL
