PARTICLE BOARD / CABINETRY SCREWS
PARTICLE BOARD SCREWS for all WOODWORKING and CABINETRY applications, including Drawer
Front Adjusting Screws, Pockethole Screws, Assembly Screws, and Installation Screws.  Most of
these screws are available in plain steel, zinc plated, nickel plated, black oxide, and brass plated
DEEP THREAD PARTICLE BOARD SCREWS / ASSEMBLY SCREWS
Flat Head
Without
Type 17 Point
Flat Head With Nibs and Type 17 Point

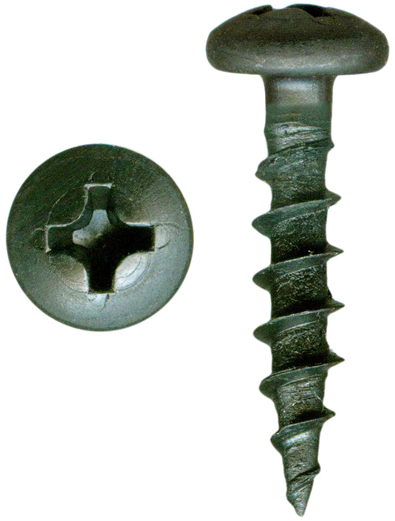

Pan Head
Phillips
Without
Type 17 Point

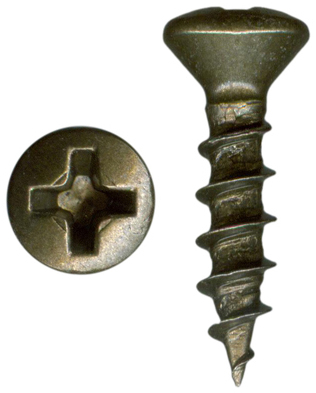

Oval Head
Phillips
Without
Type 17 Point
LENGTH
#4
#5
#6
#7
#8
#9
#10
#12
7/16

1/2

5/8

3/4

1



1-1/8

1-1/4



1-1/2



1-5/8



1-3/4



2



2-1/4



2-1/2




2-3/4



3




3-1/2

4

Other finishes, head styles, and variations may be available in
Flat, Pan, Truss, Oval, Phillips, Phillips/Square Combo, Square, With Nibs Under Head, Without Nibs, Sharp Point, Type 17
Point, Plain Steel, Zinc Plated, Black Oxide, Brass Plated, Antique Brass Plated, Chrome Plated, White Painted Heads

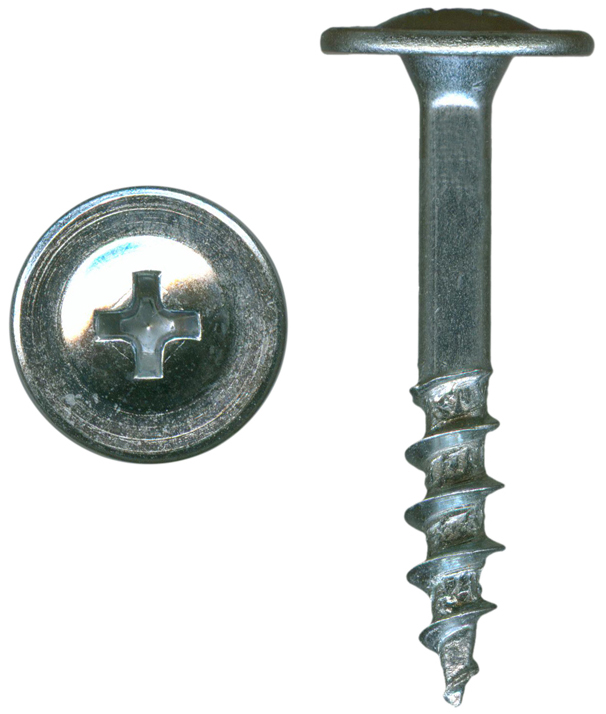

ROUND WASHER HEAD
DRAW FRONT ADJUSTING SCREWS / DRAWER SLIDE SCREWS /
HINGE SCREWS / INSTALLATION SCREWS
LENGTH
#6
#7
#8
#9
#10
#14
7/16

1/2

5/8

3/4

7/8

1

1-1/8

1-1/4

1-1/2

1-5/8

1-3/4

2

2-1/4

2-1/2

3

3-1/2

4

Other finishes and variations may be available in
Phillips, Phillips/Square Combo, Square, Sharp Point, Type 17 Point, Plain Steel, Zinc Plated, Black Oxide,
Brass Plated, Antique Brass Plated, Chrome Plated, White Painted Heads, Sand Painted Heads

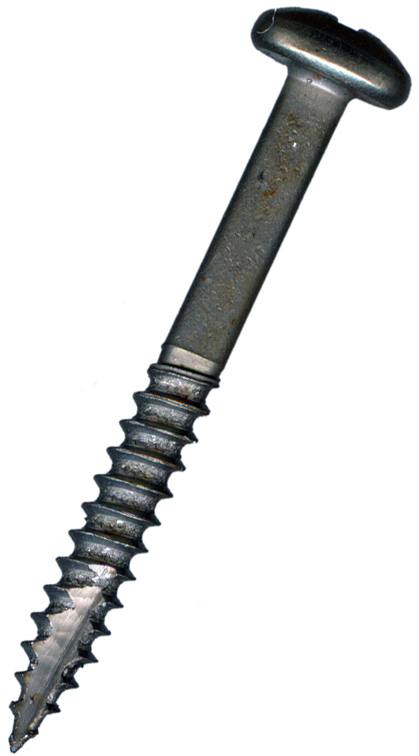

FACE FRAMING SCREWS / POCKETHOLE ASSEMBLY SCREWS
Type 17 Point
LENGTH
#6
#7
#8
1"

1-1/4

1-1/2

Other finishes and variations may be available in
Phillips, Square, Plain Steel, Zinc Plated, Zinc Yellow Plated
DIAMETER
For further information, sizes, pricing, and to order CABINETRY SCREWS
in other categories, please call  1-800-877-2907,
fax  1-781-821-2845, or email  sales@alliedbolt.com
Phillips/Square Combo
Phillips
Square
