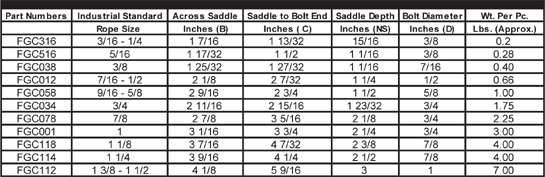

| FIST GRIP CLIP (FORGED) |
| FORGED HARDWARE |

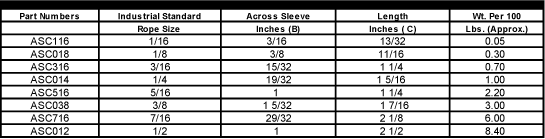

| Aluminum Sleeves (6063 - Crimp) |
| Insure proper number of clips used per industry specifications. Not designed for lifting. No rated capacity. Larger sizes available to 1" |
| Meets specification FF-C-450 Type III, Class 1 Insure proper number of clips used per industry specifications. Not designed for lifting. No rated capacity. 1045 Carbon Steel Hot Dipped Galvanized |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |

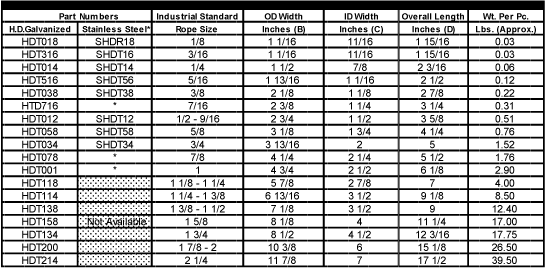

| WIRE ROPE THIMBLE |
| FF-T-276b, Type II. Insure proper number of clips used with thimbles per industry specifications. Stainless steel thimbles vary in size and usually run smaller than the carbon counterpart. Call for exact dimensions if critical to your application. * above indicates a Non-Stock item. |

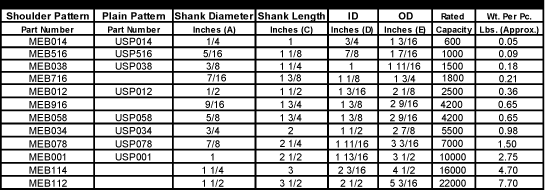

| MACHINERY LIFTING EYE BOLT |
| Full shank thread to shoulder. UNC. Forged - Self Colored Shoulder pattern diameters 3/8" through 1 1/4" also available HDG. Rated capacity considers a straight vertical lift. Use caution when lifting. Any angle beyond vertical (zero degree) will reduce the rating capacity. Manufactured to ANSI design specification B18.15 |

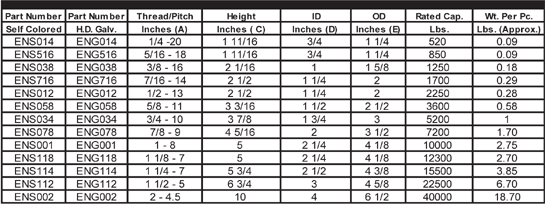

| FORGED EYE NUTS |
| Rated Capacity relates to the Eye Nut capacity. The capacity's length of the attachment stud must be considered. All related capacities consider a straight vertical lift. Use caution when lifting. Any angle beyond vertical (zero degree) will reduce the rating capacity. 1045 Carbon Steel Self Colored Hot Galvanized |
| please call 1-800-877-2907, fax 1-781-821-2845, or email sales@alliedbolt.com |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
