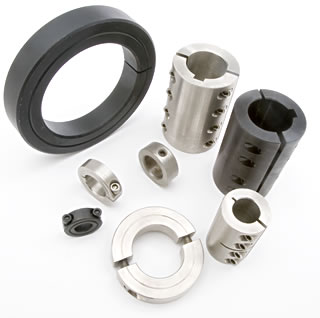

| SHAFT COLLARS Shaft collars act as a stop to retain equipment on shafts |
| There are three variations ... The 'Set Screw' Shaft Collar : This is the most economical shaft collar. It is installed by tightening a set screw that extends through the shaft collar. Unfortunately, the set screw often mars the shaft. The 'Single Split' Shaft Collar : This collar doesn't mar the shaft, and provides a greater axial load than the set screw collar. This collar can be used when the end of the shaft is accessible. It functions as a clamp around the circumference of the shaft, held in place by a single socket head cap screw. The (2-Piece) 'Double Split' Shaft Collar : The load values exceed the single split style by approximately 10%. This collar is used for mid-shaft applications when other components are already in place, or when a slightly greater axial load is desired. It can compensate for a slightly oversized or undersized shaft, and is held in place by two socket head cap screws. |
| Most shaft collars are available in AMERICAN STANDARD, METRIC, STEEL ZINC PLATED, STEEL BLACK OXIDE,304 STAINLESS STEEL |
| For further information, sizes, pricing, and to order SHAFT COLARS, please call 1-800-877-2907, fax 1-781-821-2845, or email sales@alliedbolt.com |
