| FORGED CLEVIS |
| FORGED HARDWARE |

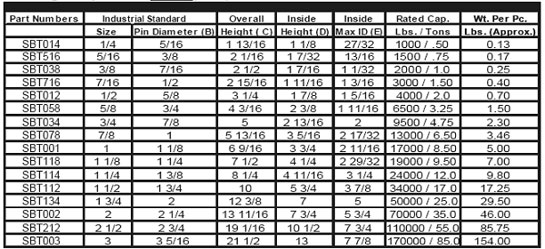

| SCREW PIN ANCHOR SHACKLE |

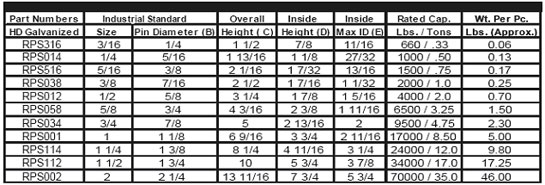

| ROUND PIN ANCHOR SHACKLE |
| SAFETY BOLT ANCHOR SHACKLE |
| Meets specification RR-C-271b, Type IVA, Grade A, Class 2 Use caution when lifting. Any angle beyond vertical (zero degree) will reduce the rated capacity. Safety factor is 2X the Rated Capacity. Minimum breaking strength is 6X Rated Capacity. 1045 Carbon Steel Hot Dip Galvanized |
| Meets specification RR-C-271d, Type IVA, Grade A, Class1 Use caution when lifting. Any angle beyond vertical (zero degree) will reduce the rated capacity. Safety factor is 2X the Rated Capacity. Minimum breaking strength is 6X Rated Capacity. 1045 Carbon Steel Hot Dip Galvanized |
| Meets specification RR-C-271b, Type IVA, Grade A, Class 3 Use caution when lifting. Any angle beyond vertical (zero degree) will reduce the rated capacity. Safety factor is 2X the Rated Capacity. Minimum breaking strength is 6X Rated Capacity. 1045 Carbon Steel Hot Dip Galvanized |
| WIRE ROPE CLIP (FORGED) |
| Click Image Below To View More FORGED HARDWARE |
| For further information, sizes, and pricing for other items in FORGED HARDWARE please call 1-800-877-2907, fax 1-781-821-2845, or email sales@alliedbolt.com |
