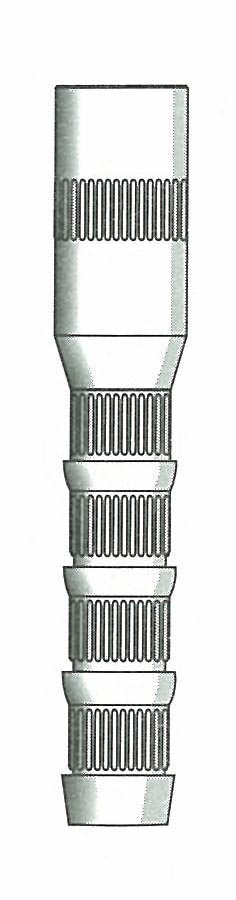

POWER-SERT® High-Performance Anchor
"The Ultimate Problem Solver"
The POWER-Sert® High Performance Anchor has extremely high holding values as the epoxy
bond adheres to the entire length of the anchor body, producing excellent ultimate tensile
strength.  It is vibration resistant as the epoxy bond withstands more seismic vibration
loading than most standard mechanical anchors.
Installation :
(1) Drill proper size hole, (2) Clean Hole, (3) Inject Inject-TITE® Two-Part Epoxy into hole, (4)
Thread bolt into POWER-Sert® anchor, (5) Insert POWER-Sert® anchor into hole
Available in
Carbon Steel, Type 303 (18-8) Stainless Steel, and Type 316 Stainless Steel
Bolt Size
Drill Diameter
Hole Depth
Box Quantity
1/4
5/16
1-3/4
100
5/16
7/16
2-3/4
100
3/8
1/2
3-1/4
50
1/2
5/8
4-1/8
25
5/8
7/8
6-1/4
10
3/4
1
7-1/2
5
1
1-1/2
9-1/2
5
1-1/4
1-3/4
12-1/2
5
Inject-TITE® Two-Part Epoxy
Fast-Set Formula and Standard Set Formula
Inject-TITE® Two-Part Epoxy (1) eliminates expansion forces as it can be used close to a free edge,
(2) can be used in a wide range of applications including concrete, masonry, and mortar, (3) it can be
used in water-filled or moist holes, as it is water insensitive before, during and after cure, (4) it can be
used in areas with seismic concerns, as it resists tensile and shear loads due to earthquake and
wind, and (5) it can be used in locations subject to severe exterior weather conditions.
Stud Diameter
Hole Diameter
Imbedment
2500 psi Concrete
4000 psi Concrete
5500 psi Concrete
3/8
7/16
3-3/8
7,300
8,250
9200
3/8
9/16
3-3/8
9,560


3/8
7/16
5-5/8
10,980
11,360
11,740
1/2
9/16
4-1/2
10,540
11,730
12,920
1/2
11/16
4-1/2
14,640


1/2
9/16
7-1/2
14,660
17,010
19,360
5/8
3/4
5-5/8
14,800
18,870
22,940
5/8
7/8
5-5/8
23,340


5/8
3/4
9-3/8
21,560
26,260
30,960
3/4
7/8
6-3/4
22,380
25,870
29,360
3/4
1
6-3/4
29,850
34,340
38,360
3/4
7/8
11-1/4
30,320
34,340
38,360
7/8
1
7-7/8
43,280


1
1-1/8
9
55,650


1-1/4
1-3/8
11-1/4
77,860


ULTIMATE BOND STRENGTH
ULTIMATE LOAD (LBS) FOR THREADED ROD INSTALLED IN STONE AGGREGATE CONCRETE
* OTHER TEST RESULTS AVAILABLE FOR REINFORCING BAR, HOLLOW BLOCK, AND GROUT FILLED BLOCK
Other variations of epoxy may be available in
ALL-WEATHER ACRYLATE
AVAILABLE IN 22 OUNCE TWO-COMPONENT CARTRIDGES
MINIMUM CURE TIMES
Minimum Substrate Temperature
Fast-Set Formula
Standard Set Formula
40° F  (5° C)
24 HOURS

65° F  (18° C)
8 HOURS
48HOURS
70° F  (21° C)
2-1/2 HOURS
36 HOURS
80° F  (27° C)
2 HOURS
24 HOURS
100° F  (38° C)
1 HOUR
12 HOURS
